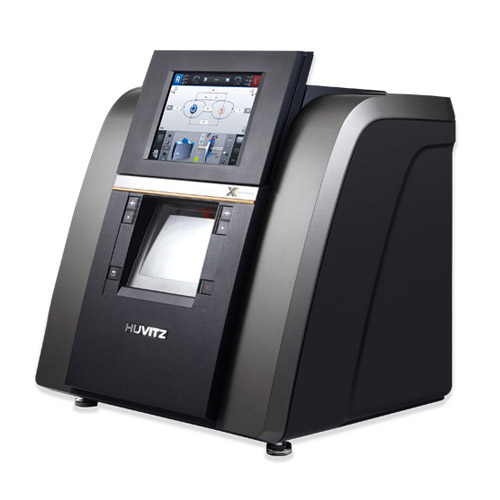

Huvitz HPE-910 Kaizer XX Edger

Huvitz HPE-910 Kaizer XX Edger

Expand the possibility with Step Bevel functionality

Watch the video

SKU: HPE-910 Categories: , Tags: , , ,

Description

80 Seconds

80 seconds to cut the frame with KAIZER XX. KAIZER XX has enhanced not only its high speed, but also its stability

35 Styles of Step-Bevel

KAIZER XX supports almost all of frame types with the combination of 7 different step bevel types and 5 edge styles. For example, full or partial, front or rear, bevel top or grooved top, and etc.

2X Built-in Drill Solution

Built-in Driller reduces processing time by 50%. Enjoy the reduced processing time, greater diversity and advanced scalability.

Smarter Performance

Easier to process any kinds of jobs, including complex and difficult ones. Smarter algorithm, automatic recognition, intuitive GUI, compatibility, even with crystal clear polishing.

Specifications

Lens Material Plastic, Polycarbonate, High index plastic, Glass, Trivex
Wheel Diameter 125mm
RPGA-X(220V) / RPGA-XN(220V) / RPA-X(110V) / RPA-XN(110V)
* XN type is impossible to the Step Beveling
Edging Mode Beveling (Normal / Auto / Manual Mode, Asymmetric, Semi-U, Mini,)
Grooving (Normal / Auto / Manual Mode, Partial / Hybrid / Dual Grooving Option)
Flat Edging
Safety Beveling
Polishing
Variable Asymmetric & Semi-U Beveling
Step Bevelimg(T Bevel / Bevel Step / Step)
* Optinal functions not supported by XN type.
Functions Job Manager
Digital Pattern
Hole Editor
Retouch
Bevel / Groove Simulation
Shape Mirroring
Easy Click
Concave Shape
Scan & Cut
Utilities LCD Tilting
Automatic Edging Room Door
Edging Room illumination
Simultaneous Bilateral feeling
SD Card Storage (Memory Included)
Barcode Reader (Optional)
Vacuum Interface
Display 9.7 inch Color TFT LCD (1024 x 768) with Touch Screen
Edging Size Max : 90 mm
Min : Flat Edging : 18.5 mm (without Safety Bevel)
Min : Bevel Edging : 20 mm (without Safety Bevel)
Dimensions 540(W) x 472(D) x 580(H) mm
Weight 51 kg
Power Supply AC 100~120V / AC 200~240V 50/60 Hz
Power Consumption 1200W (110V), 1500W (220V)
Designs and details can be changed without prior notice for improvements.
